Feature



TM480 Asphalt Reclaimer/Patcher

As the first asphalt hopper with whole functions and large capacity, TM480 is capable to load 7000kg asphalt mixture all at once. With dual functions of heating and heat preservation, heating cold asphalt chunk to required temperature and preserve hot asphalt are both available.

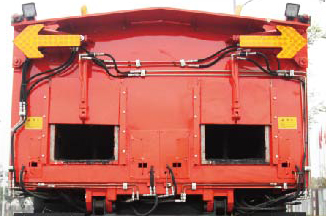

2 independently-controlled hoppers can be filled with asphalt mixtures of 2 gradation, which offers different aggregate sizes for pavement maintenance of different structural depth.

Hydraumatic dumping discharge design increases supply efficiency and reducing labor intensity with no required cleaning and maintenance.

Both hydraulic and pneumatic powered outputs, by which hydraulic hammer and pneumatic pick are powered can be operated at the same time, making the working efficiency doubled.

Fuel supply adopts 3 standard 50kg LPG cylinder, which is a "green" fuel and easy to replace.

Clog-free emulsion asphalt spraying system with heating and thermostatic functions ensures uniformity and smoothness in spraying.

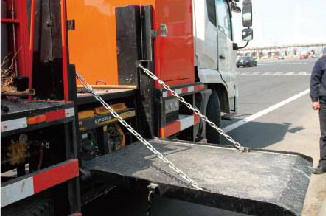

Ergonomic design of hydraulic lifting platform uses to load and upload auxiliary equipment such as pavement saw and vibratory plate, making more convenience.

Asphalt hopper is designed in a lower position to make charging more convenient of asphalt mixing plant.

TM480 provides various optional accessories. Due to our policy of continual improvement, we reserve the right to amend the design or specification without prior notice. Please contact us for more details.

Heating & Thermostatic Hopper Capacity:7T Discharge:hydraulically dumping
LPG Cylinder Capacity:50kg×3

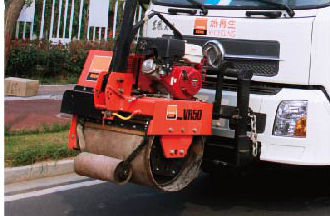

Roller Operating Weight:490kg Centrifugal Force:16kN
Emulsion Spraying System clog-free, compressed air pressure,  automatic heating&thermostatic functions
Other air compressing system,  lifting platform,  diesel generator
